Catalyst System Efficiency? Expert Insights on Performance Optimization

When your catalyst system efficiency falls below threshold in Bank 2, you’re facing more than just a check engine light—you’re dealing with a complex interplay of mechanical, chemical, and diagnostic factors that demand expert attention. The catalyst system represents one of your vehicle’s most critical emission control mechanisms, and when it underperforms, the ripple effects extend from fuel economy to engine longevity. Understanding what triggers this warning and how to restore optimal performance requires diving deep into the science of catalytic conversion and modern diagnostic protocols.

The phrase “catalyst system efficiency below threshold Bank 2” might sound technical, but it reflects a fundamental principle: your vehicle’s onboard diagnostic system has detected that the oxygen sensors upstream and downstream of your catalytic converter are reading values that indicate insufficient catalytic conversion is occurring. This isn’t a guess—it’s a precise measurement of how effectively your catalyst is transforming harmful emissions into benign compounds. When this efficiency dips below manufacturer specifications, your engine management system triggers a diagnostic trouble code, typically P0420 or similar variants, signaling that intervention is necessary.

The stakes of ignoring this warning extend beyond environmental responsibility. A failing catalyst system efficiency affects your vehicle’s overall performance metrics, including fuel consumption patterns and engine responsiveness. Whether you’re investigating this issue for diagnostic purposes, repair planning, or general automotive knowledge, this comprehensive guide will equip you with the expert insights needed to understand, diagnose, and address catalyst system inefficiency at Bank 2.

Understanding Your Catalyst System

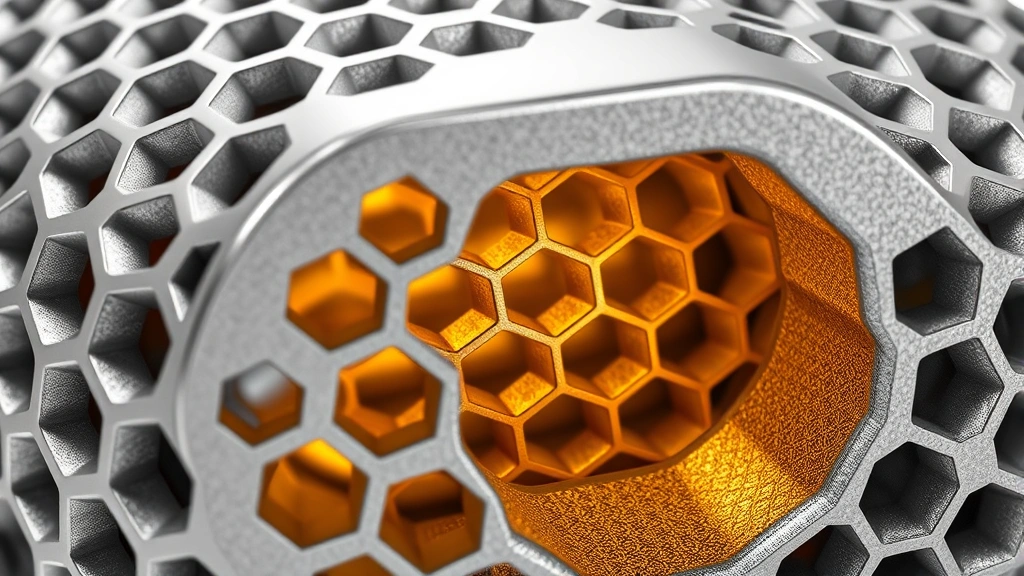

Your catalytic converter operates as a chemical reactor, transforming three primary pollutants—carbon monoxide (CO), nitrogen oxides (NOx), and unburned hydrocarbons (HC)—into less harmful compounds: carbon dioxide (CO₂), nitrogen (N₂), and water (H₂O). This transformation occurs through a carefully orchestrated chemical process involving precious metal catalysts—typically platinum, palladium, and rhodium—embedded in a honeycomb ceramic substrate.

The efficiency of this conversion process depends on precise conditions. The catalyst requires adequate exhaust temperature, proper air-fuel mixture ratios, and sufficient contact time between exhaust gases and the catalytic surface. When any of these variables falls outside optimal ranges, conversion efficiency declines. The FocusFlowHub Blog has explored how systematic optimization principles apply across mechanical systems, much like catalyst performance requires systematic monitoring.

Modern vehicles employ a dual-bank catalyst system, with Bank 1 and Bank 2 representing the two sides of your engine. This redundancy ensures comprehensive emission control across all cylinders. Each bank has its own catalyst, oxygen sensors, and monitoring circuits. When your system reports catalyst efficiency below threshold at Bank 2 specifically, you’re looking at an issue isolated to that particular converter and its associated sensor network.

The catalyst system works in concert with your vehicle’s oxygen sensors, which provide real-time feedback to the engine control module (ECM). The upstream oxygen sensor measures exhaust composition before catalytic conversion, while the downstream sensor measures it after conversion. The ECM calculates conversion efficiency by comparing these two readings. When the difference between upstream and downstream sensor readings falls below expected thresholds, the efficiency warning triggers.

Why Bank 2 Matters: Understanding Engine Architecture

Bank 2 refers to the side of your engine opposite the number-one cylinder. In most vehicles, this distinction is crucial for diagnostic purposes because it isolates problems to specific cylinders and their associated emission control components. Understanding which side is Bank 2 in your particular vehicle is essential—it varies by manufacturer and engine configuration.

A catalyst system efficiency problem at Bank 2 specifically suggests the issue originates from that bank’s cylinders or its dedicated catalyst converter. This precision in diagnostic information is invaluable because it narrows the troubleshooting scope considerably. Rather than investigating your entire emission control system, technicians can focus on Bank 2’s fuel injectors, oxygen sensors, exhaust manifold, and catalytic converter.

The distinction between banks becomes particularly important when considering repair costs and complexity. A failing Bank 2 catalyst might coexist with a perfectly functional Bank 1 catalyst. Some vehicle owners, upon learning about Bank 2 inefficiency, wonder whether they can continue driving safely. While the vehicle may operate, the check engine light indicates that emissions standards aren’t being met, and continued operation without repair typically results in failed emissions testing.

Interestingly, Bank 2 problems sometimes stem from imbalanced performance between the two banks. If Bank 1 is operating at optimal efficiency while Bank 2 lags, the issue might not be the catalyst itself but rather fuel delivery or combustion quality on that specific bank. This is why comprehensive diagnostic work examines the entire fuel and ignition system, not just the catalyst converter.

Efficiency Threshold Explained: The Numbers Behind the Warning

Catalyst efficiency thresholds vary by manufacturer and model year, but they typically require conversion efficiency of 90-95% or higher. This means that 90-95% of pollutants entering the catalyst must be converted to benign compounds exiting the catalyst. When efficiency drops below these thresholds—say, to 85% or lower—your vehicle’s diagnostic system triggers the warning.

These thresholds aren’t arbitrary. They’re established based on emissions standards set by the EPA and equivalent regulatory bodies worldwide. Manufacturers calibrate their diagnostic systems to ensure that vehicles meeting these efficiency standards will pass emissions testing. When a vehicle reports efficiency below threshold, it’s essentially confirming that emissions standards won’t be met.

The diagnostic system calculates efficiency through a complex algorithm comparing oxygen sensor readings. The upstream sensor provides a baseline measurement of exhaust composition. The downstream sensor, positioned after the catalyst, measures what remains. The ECM analyzes the difference in switching rates between these sensors—a rapid switching upstream sensor combined with a slower switching downstream sensor indicates effective catalytic conversion. When both sensors switch at similar rates, conversion efficiency is poor.

Understanding this threshold concept helps explain why a catalyst that’s merely “degraded” might still function adequately for normal driving but fail the diagnostic check. A catalyst doesn’t need to be completely non-functional to trigger an efficiency warning—it simply needs to fall below the manufacturer’s threshold. This is actually beneficial because it prompts maintenance before complete failure occurs, preventing more severe damage to your vehicle’s engine and emission system.

The relationship between threshold values and real-world emissions is direct. A catalyst operating at 85% efficiency versus 95% efficiency produces significantly different pollutant levels. Over the lifetime of a vehicle, this difference accumulates to substantial environmental impact. This is why regulatory agencies maintain strict efficiency standards rather than allowing degraded catalysts to continue operating indefinitely.

Diagnostic Process and Tools: How Experts Identify the Problem

Professional diagnosis of catalyst system efficiency below threshold Bank 2 begins with reading the specific diagnostic trouble code stored in your vehicle’s computer. Using a diagnostic scanner, technicians retrieve not just the code but also freeze frame data—a snapshot of engine conditions at the moment the code was triggered. This information proves invaluable for understanding what was happening when efficiency dropped.

The next step involves visual inspection of the exhaust system, looking for obvious problems like cracks in the exhaust manifold, loose connections, or damaged oxygen sensors. Technicians also inspect the catalytic converter for physical damage or contamination. A damaged honeycomb substrate inside the catalyst can drastically reduce efficiency without necessarily blocking exhaust flow.

Advanced diagnostic work involves monitoring live oxygen sensor data while the engine runs. Technicians watch upstream and downstream sensor switching patterns in real-time, comparing them against expected parameters. This live data analysis often reveals whether the problem is truly a failing catalyst or a faulty oxygen sensor misreporting efficiency values. A standardized diagnostic protocol ensures consistent testing across different vehicle makes and models.

Some shops employ more sophisticated testing methods, including exhaust gas analysis that measures actual pollutant concentrations entering and leaving the catalyst. This direct measurement approach, while more expensive, provides definitive evidence of catalyst performance. If a catalyst is truly failing, this test will show elevated pollutant levels exiting the converter.

Fuel system diagnostics often accompany catalyst efficiency investigations. A rich fuel mixture—too much fuel relative to air—can overwhelm the catalyst’s ability to convert pollutants efficiently. Technicians examine fuel injector operation, fuel pressure, and oxygen sensor feedback to ensure the engine is running at optimal air-fuel ratios. Problems in these areas can masquerade as catalyst failure when the real issue lies upstream in the fuel system.

Common Causes of Catalyst System Efficiency Below Threshold Bank 2

The most common cause of catalyst efficiency problems is a failing oxygen sensor. The downstream oxygen sensor, in particular, can degrade over time, causing it to report inaccurate readings. When the ECM receives false data about post-catalyst emissions, it calculates incorrect efficiency values. Replacing a faulty oxygen sensor often resolves the efficiency warning without requiring catalyst replacement.

Engine misfires represent another significant cause. When a cylinder misfires—fails to ignite its fuel-air mixture properly—unburned fuel enters the exhaust system. This excess fuel overwhelms the catalyst’s conversion capacity and can actually damage the catalyst through overheating. Investigating misfires requires examining spark plugs, ignition coils, fuel injectors, and compression. Systematic troubleshooting approaches help technicians methodically eliminate each potential misfire source.

Oil contamination inside the catalyst represents a less obvious but serious problem. When engine oil leaks into the combustion chamber or exhaust system, it deposits carbon and silicon compounds on the catalyst’s surface, reducing its effectiveness. This often accompanies other engine problems like worn piston rings or valve seals. Addressing the underlying oil leak becomes necessary before the catalyst can function properly again.

Fuel quality issues sometimes trigger efficiency warnings. Low-quality fuel containing excessive detergent or contaminated fuel can affect combustion quality and exhaust composition. While rare in developed countries with fuel standards, this cause deserves consideration, particularly if efficiency problems develop suddenly after refueling at an unfamiliar station.

Exhaust system leaks create an insidious problem. When exhaust leaks exist between the engine and the upstream oxygen sensor, outside air enters the system. This ambient oxygen confuses the upstream sensor’s reading, making it appear that the engine is running leaner than it actually is. The ECM responds by richening the fuel mixture, which can degrade catalyst efficiency and trigger the warning.

A truly failing catalytic converter represents perhaps the most serious cause. Catalysts degrade gradually over time, particularly in vehicles with high mileage or those subject to harsh operating conditions. The precious metal catalysts can wear away, the ceramic substrate can crack or become contaminated, or internal components can deteriorate. Once a catalyst reaches the end of its service life, replacement becomes the only viable solution.

Solutions and Repair Strategies: Restoring Efficiency

The appropriate repair strategy depends entirely on accurate diagnosis. If oxygen sensor testing reveals a faulty downstream sensor, replacement of that sensor typically costs $200-500 and resolves the efficiency warning. This represents the least expensive solution and should always be explored before pursuing catalyst replacement.

When misfire diagnosis identifies specific spark plugs, ignition coils, or fuel injectors as problematic, addressing these components often restores catalyst efficiency. The catalyst itself may be perfectly functional—it simply couldn’t perform effectively when the engine was misfiring. Repair costs vary depending on the specific cause but generally range from $150-800.

Engine oil leaks require addressing the underlying cause—whether valve cover gaskets, oil pan gaskets, or internal engine seals. Simultaneously, the catalyst may benefit from a cleaning procedure. Some shops offer catalytic converter cleaning services using specialized chemicals that dissolve carbon deposits and restore surface area for chemical reactions. This approach works best when contamination, rather than structural failure, caused the efficiency loss. Cleaning typically costs $100-300 and can extend catalyst life significantly.

Exhaust system leak repairs depend on the leak’s location. Tightening loose connections might resolve the issue at minimal cost. Welding small cracks in the exhaust manifold costs $200-600. Replacing sections of corroded exhaust pipe runs $300-1000. These repairs should precede catalyst replacement when leaks are suspected.

Fuel system optimization sometimes addresses efficiency issues. Fuel injector cleaning, fuel filter replacement, or fuel pressure regulator adjustment can improve combustion quality and reduce unburned fuel entering the exhaust. These services typically cost $150-400 and should be considered as part of comprehensive troubleshooting.

Catalytic converter replacement becomes necessary when the converter itself is damaged or has reached end-of-life. Aftermarket converters cost $400-1200 installed, while OEM parts run $800-2500 depending on your vehicle. This represents a significant investment, which is why thorough diagnosis to rule out other causes is essential before pursuing replacement. Some vehicles benefit from efficiency improvements across multiple systems rather than isolated catalyst replacement.

Prevention and Maintenance: Keeping Your Catalyst Efficient

Regular maintenance represents your most effective defense against catalyst efficiency problems. Using quality fuel and keeping your fuel injectors clean through periodic fuel system cleaning prevents carbon deposits that can affect combustion quality. Most manufacturers recommend fuel system service every 30,000-50,000 miles for vehicles operating in harsh conditions.

Spark plug replacement at manufacturer-recommended intervals—typically 30,000-100,000 miles depending on spark plug type—ensures reliable ignition. Misfires represent a leading cause of catalyst problems, and maintaining proper ignition prevents this issue entirely. Never delay spark plug replacement when your vehicle indicates service is due.

Oxygen sensor replacement becomes due typically every 80,000-100,000 miles. Proactively replacing oxygen sensors before they fail prevents efficiency warnings and ensures your engine management system receives accurate feedback. This preventive approach costs less than troubleshooting efficiency problems after they develop.

Engine oil changes at recommended intervals maintain proper lubrication and prevent oil leaks that can contaminate your catalyst. Using the correct oil viscosity and quality specified by your manufacturer ensures optimal engine protection. Poor maintenance leading to oil leaks represents a preventable cause of catalyst degradation.

Avoiding short trips and excessive idling helps maintain catalyst temperature. Catalysts function most effectively when they reach operating temperature—typically 400-900 degrees Fahrenheit. Short trips prevent the catalyst from reaching these temperatures, causing moisture and carbon accumulation. When possible, combine errands into longer driving sessions rather than multiple short trips.

Addressing engine problems immediately prevents them from affecting your catalyst. If you notice rough idle, hesitation, or other signs of engine problems, have them diagnosed promptly. Allowing problems to persist increases the likelihood they’ll damage your catalyst through misfires or fuel system issues.

Consider using premium fuel if your vehicle requires it. Higher octane fuel burns more completely and reduces unburned hydrocarbons entering the exhaust system. If your manual specifies premium fuel, using regular fuel can cause detonation and increase unburned fuel, stressing your catalyst unnecessarily.

FAQ: Catalyst System Efficiency Questions Answered

Can I drive with catalyst efficiency below threshold Bank 2?

Technically, yes—your vehicle will continue running. However, you’re operating in violation of emissions standards, and most jurisdictions won’t pass your vehicle for registration or inspection. The check engine light indicates your vehicle needs service. Continued operation risks further catalyst damage and may result in more expensive repairs.

How much does catalyst replacement cost?

Aftermarket catalytic converters typically cost $400-1200 installed, while OEM parts range from $800-2500. Luxury and high-performance vehicles may cost significantly more. Always get multiple quotes and consider whether less expensive repairs might resolve your specific issue before committing to replacement.

How long does it take to fix catalyst efficiency problems?

Oxygen sensor replacement takes 1-2 hours. Misfire diagnosis and repair varies from 1-4 hours depending on the cause. Catalytic converter replacement typically requires 2-4 hours. Always ask your shop for time estimates and compare them across different facilities.

Will a bad oxygen sensor cause catalyst efficiency warnings?

Yes, absolutely. A faulty downstream oxygen sensor is one of the most common causes of efficiency warnings. This is why technicians always test oxygen sensors before recommending catalyst replacement. A sensor replacement costs far less than a new converter.

Can a clogged air filter cause catalyst efficiency problems?

Indirectly, yes. A severely clogged air filter restricts airflow, creating a rich fuel mixture that can affect combustion and stress the catalyst. However, a clogged filter alone typically won’t trigger an efficiency warning—it usually causes other symptoms first, like reduced engine power or rough idle.

What’s the relationship between catalyst efficiency and fuel economy?

A failing catalyst often indicates fuel system or ignition issues that simultaneously reduce fuel economy. Addressing the root cause of efficiency problems typically improves fuel economy as well. However, the catalyst itself doesn’t directly affect fuel economy—it’s an emissions control device, not a fuel consumption device.

How can I tell if my catalytic converter is physically damaged?

Physical damage like cracks or a rattling internal substrate typically requires removal and inspection. However, excessive exhaust noise, reduced engine power, or a rotten egg smell from the exhaust can indicate internal catalyst damage. Professional inspection with the converter removed provides definitive diagnosis.
